Faster line speeds don’t always increase total production. As packaging systems accelerate, short interruptions can compound and cause end-of-line packaging bottlenecks.

The concept that explains this is the V curve.

What Is the V Curve in High-Speed Packaging Lines?

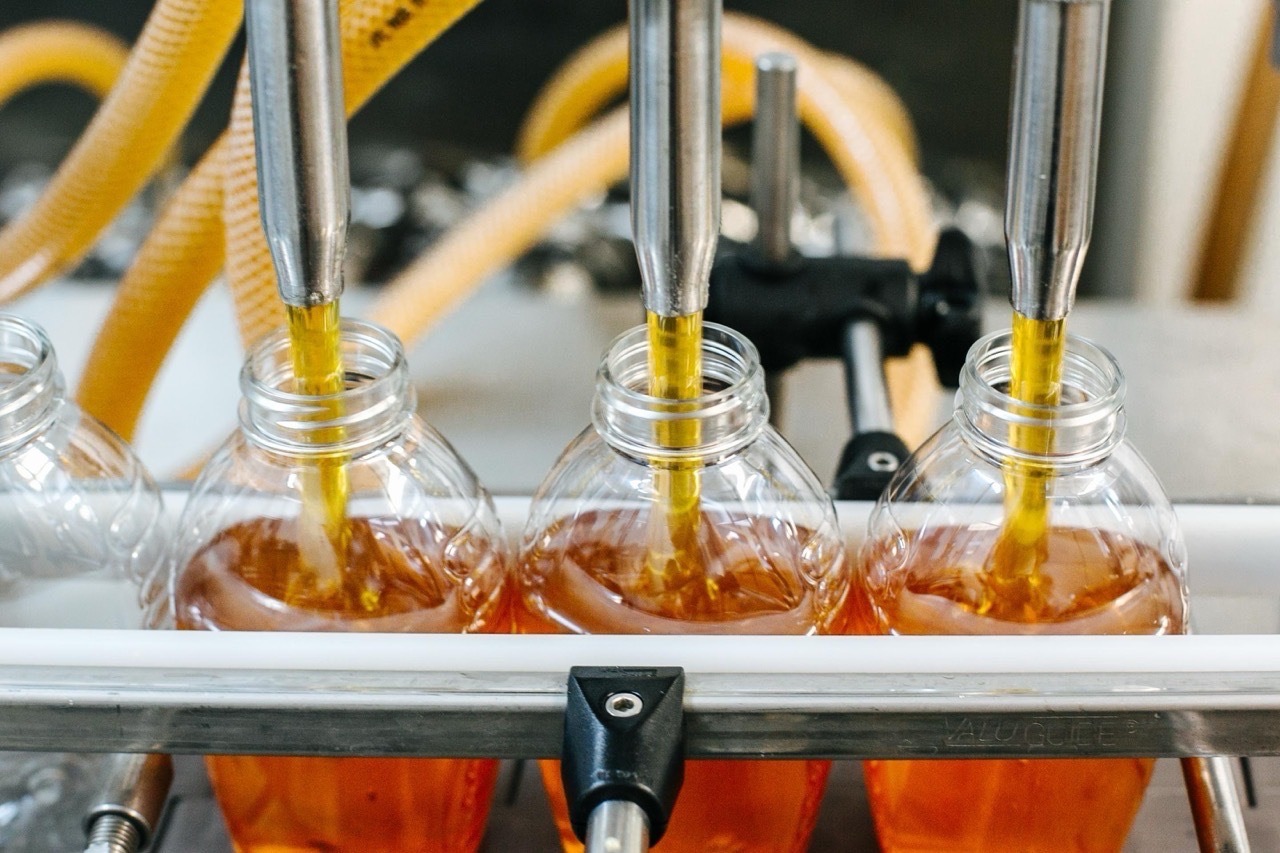

Every packaging line has one machine that sets the operating rate of the system. For example, in liquid packaging operations, that machine is usually the filler, which dispenses product into containers.

Stopping a filler repeatedly creates waste, sanitation concerns, and lost production time.

Engineers, therefore, try to keep that machine operating continuously within its nominal speed window.

Machines upstream and downstream of this critical machine must run faster so the line can recover from brief interruptions.

This difference in machine speeds is known as the V curve, and it helps engineers identify bottlenecks and maintain stable performance on a high-speed packaging line.

Example of the V Curve on a Packaging Line

Consider a simplified section of an automated packaging line. The machines below are shown by operating speed, not by their physical order on the line.

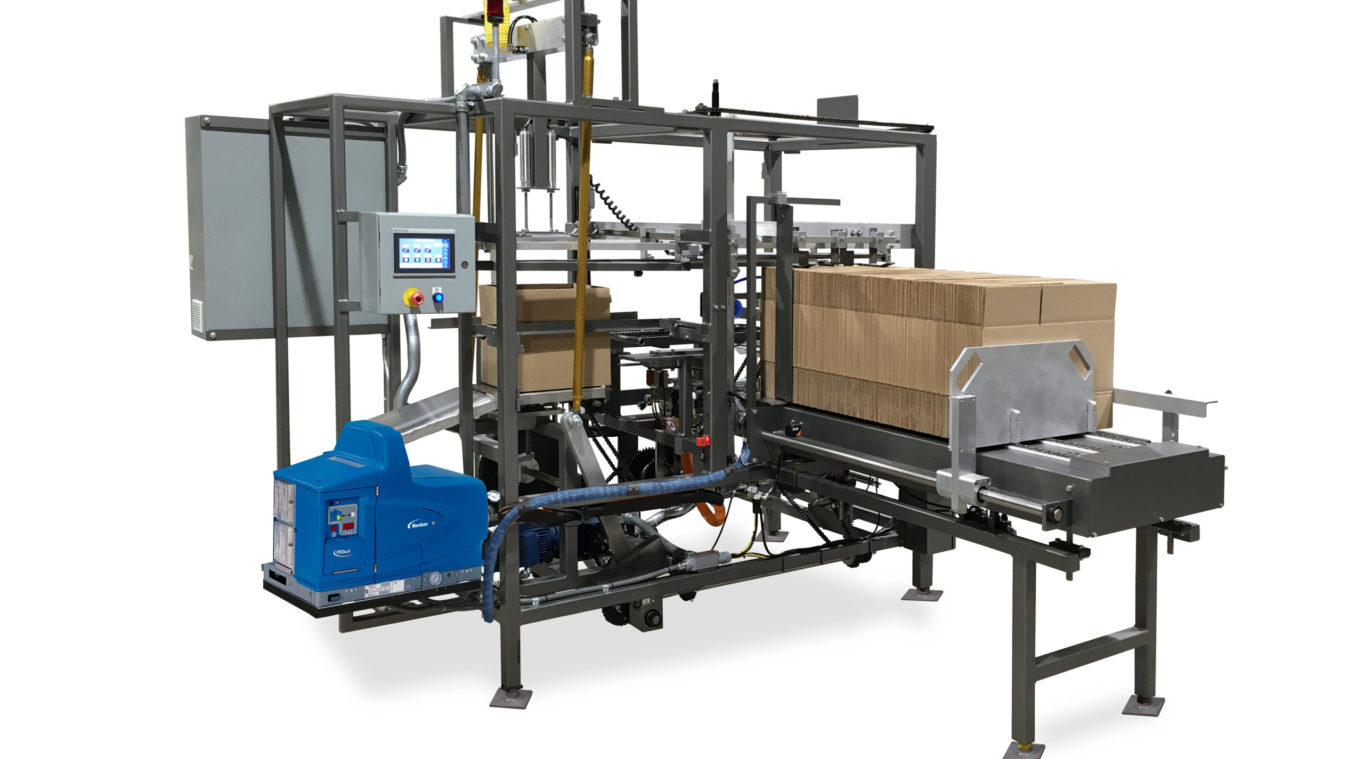

• Case Erector: About 130 units per minute

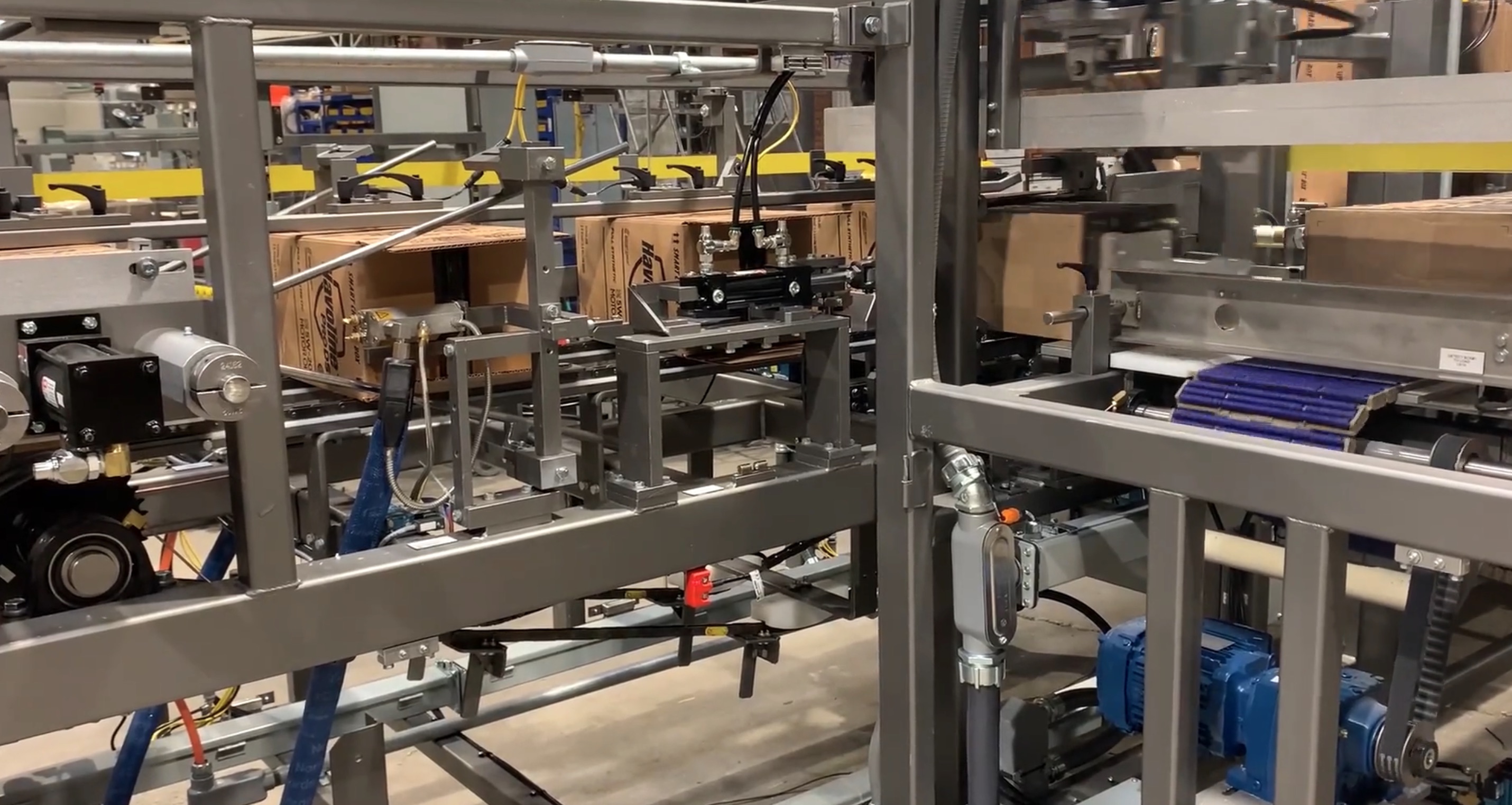

• Case Packer: About 115 units per minute
• Filler: 100 units per minute (critical machine)

The filler sets the base rate of the line. The packer runs faster so it can recover from short stops without forcing the filler to shut down. The case erector runs even faster to ensure the packer never runs out of cases. This offset in operating speeds places the filler at the bottom of the V, with the packer and case erector forming the higher sides of the curve.

A Simple Way to Picture the V Curve

Highway traffic offers a useful comparison.

Let’s imagine a highway where every driver travels at the same rate of speed. One driver taps the brakes, and every car behind them must slow down. The ripple spreads backward until all the vehicles come to a stop.

Packaging lines follow a similar pattern.

If every machine runs at the same rate, a brief stop at one station forces the entire system to slow down or stop.

Now imagine drivers behind the lead vehicle can accelerate slightly faster. When the lead driver slows momentarily, the vehicles behind close the gap, and traffic continues moving.

That recovery capacity reflects how the V curve stabilizes a packaging system. Machines surrounding the critical piece of equipment operate faster so they can absorb disruptions without forcing that machine to stop.

Why High-Speed Lines Feel the V Curve More

The V curve affects both slow and fast packaging operations. However, its impact is far more noticeable on a high-speed packaging line.

At lower rates, a brief interruption delays only a small number of units. On high-speed packaging equipment, production may reach hundreds of units per minute. A stoppage lasting only a few seconds can quickly starve downstream machines or overwhelm accumulation zones.

These disruptions often create end-of-line packaging bottlenecks, in which case forming, packing, sealing, and palletizing must coordinate tightly.

Modern packaging line automation helps reduce these disruptions through servo-driven motion systems, synchronized machine communication, and recipe-based changeovers that maintain stable production rates.

Keep Your Packaging Line Running at Full Speed

Wayne Automation designs end-of-line packaging solutions that help manufacturers eliminate bottlenecks on high-speed packaging lines. Our engineers work with project teams to analyze line rates and identify the machine that sets the production pace.

From there, Wayne helps configure surrounding equipment so each machine provides enough speed margin to absorb short interruptions. Case erectors, packers, and other line equipment are configured to maintain the V curve and meet throughput expectations.

Wayne machines are built for demanding applications and supported by scheduled service programs and experienced technical teams who help customers diagnose issues and improve packaging line performance.

Connect with the Wayne Automation team to discuss ways to eliminate end-of-line packaging bottlenecks and improve performance across your packaging operation.
